Hikvision DS-2TD2836-50 Bispectrum Thermal & Optical Network Bullet Camera with 50mm Thermal Lens

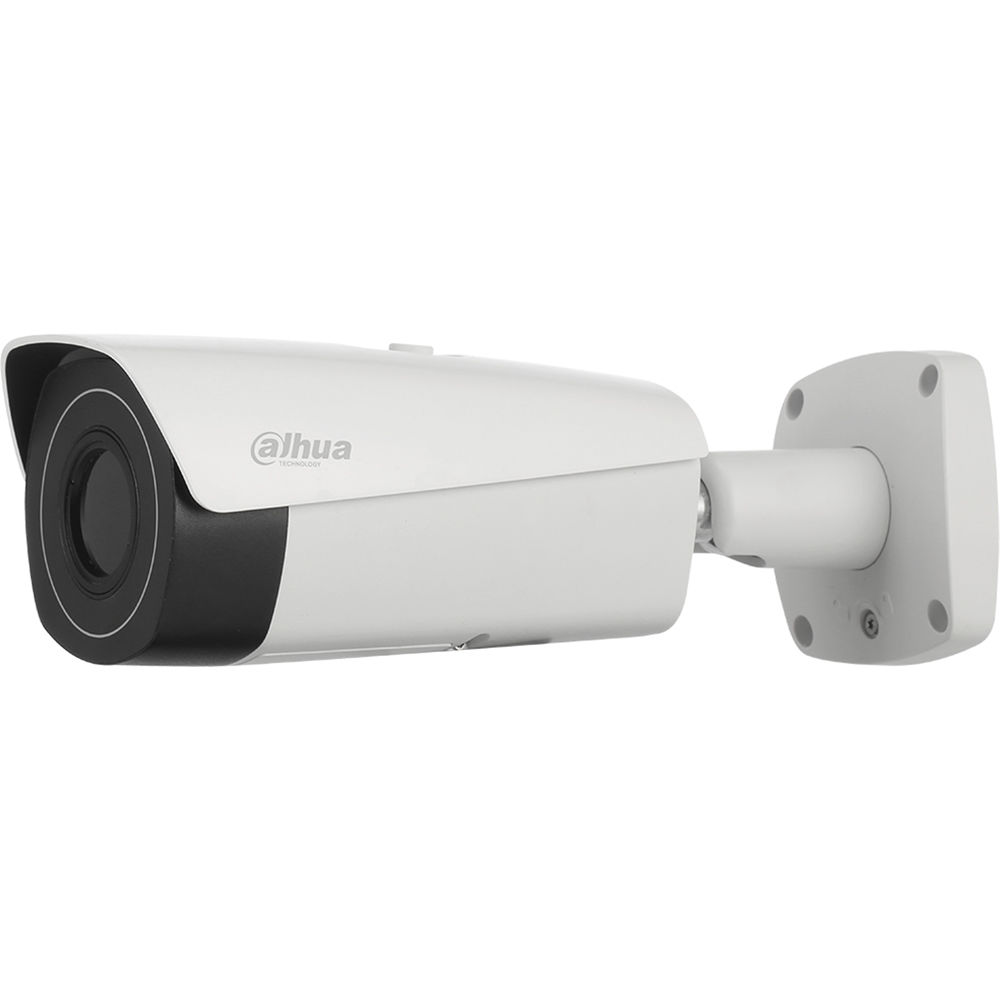

The Pro Series DH-TPC-BF5400-TC Thermal Network Bullet Camera with 13mm Lens from Dahua Technology is equipped with an uncooled VOx microbolometer to capture 400 x 300 resolution video. The 13mm fixed lens delivers a 29.7° horizontal field of view. This camera has built-in fire detection and temperature measurement functionality, and enables you to set temperature threshold alarms. Two-way audio is possible thanks to audio input and output ports. An onboard memory card slot supports microSD cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This thermal bullet camera is ONVIF compliant for Profiles S & G, ensuring compatibility with a wide range of surveillance devices. Designed for outdoor use, it is housed in an IP67-rated metal enclosure.

Suitable for forest fire prevention
Uncooled VOx thermal sensor technology
<40mK thermal sensitivity
17µm spectral range
Focus-free 13° fixed lens
Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects
Advanced intelligent functions include fire detection and alarm
Remote temperature monitoring functionality with the ability to set temperature threshold alarms (-40 to 1022°F)
H.264 and MJPEG video compression
CBR and VBR
Unicast and multicast streaming methods
14 color palettes
Image settings include brightness, sharpness, ROI, AGC, FFC, and 3D-DNR
ROI (region of interest) for four zones
Motion detection for four zones (rectangles)
Privacy masking for four areas (rectangles)
180° flip perspective
Mirror
19x digital zoom
RS-485 interface
Two alarm inputs and one alarm output
Up to 20 users
Compatible with Internet Explorer 11 or below, Chrome 45 or below, Firefox 52 or below, iOS, and Android
Local PC for instant recording and NAS edge storage
IP67-rated metal enclosure that is suitable for outdoor use
±15% input voltage tolerance and 6kV lightning protection
Effective Distance Man (5.9 x 1.64′ )
1476′ (detect)
361′ (recognize)
197′ (identify)
Effective Distance Vehicle (7.55 x 7.55′)
4235′ (detect)
1148′ (recognize)
590′ (identify)

In the Box
Dahua Technology Pro Series DH-TPC-BF5400-TC Thermal Network Bullet Camera with 13mm Lens
3-Year Warranty
