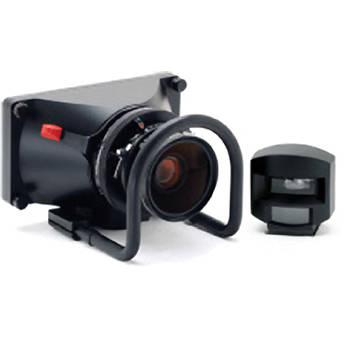

Horseman 110mm f/5.6 Super-Symmar XL Lens for SW617

The Horseman 110mm f/5.6 Super-Symmar XL Lens is a Schneider 110mm f/5.6 Super-Symmar XL with a standard Copal #1 shutter, but built into a Horseman-specific helical focusing mount and barrel assembly made to fit upon their SW617 Professional medium format panoramic camera. It provides a wide angle perspective on the 617 Professional that’s roughly equivalent to the view of a 27mm lens in 35mm terms; pleasantly wide, but not distorting the spatial relationships of objects in a scene. A built-in lens guard helps protect the sensitive optics.

The Schneider Super-Symmar XL 110 is an aspherical wide-field lens design which gives extremely high peak contrast and resolving power when stopped down to at least f/11. Its 80° of coverage and 186mm minimum image circle do permit use with the 617 Professional at the maximum aperture if needed, however. The 6 element/4 group aspherical has a 105° viewing angle and a 288mm peak image circle, allowing plenty of shift with the 617 Professional.

A Schneider 110mm f/5.6 Super-Symmar XL with standard Copal #1 shutter, built into Horseman-specific helical focusing mount/barrel assembly
Aspherical design permits extremely high peak resolution and contrast with excellent correction for distortion
Exclusively made to fit Horseman SW617 Professional medium format camera
Focuses as close as 5.2′ (1.6m)
Provides wide panoramic format without distortion
Uses 67mm filters on front, or 52mm filters upon rear lens element
Built-in lens guard
Large maximum aperture aids focusing in poor light
Extremely fine resolving power and contrast when stopped down just a few steps from maximum aperture

In the Box
Horseman 110mm f/5.6 Super-Symmar XL Lens for SW617
Viewfinder
Copal #1 Shutter
Push-On Front & Rear Caps
1-Year Warranty
