HuddleCamHD TEAMPLUS Video Conference Kit for Medium to Large Rooms

HuddleCamHD TEAMPLUS Video Collaboration Solution G3 (HC-TEAMPLUS-VCS-G3)

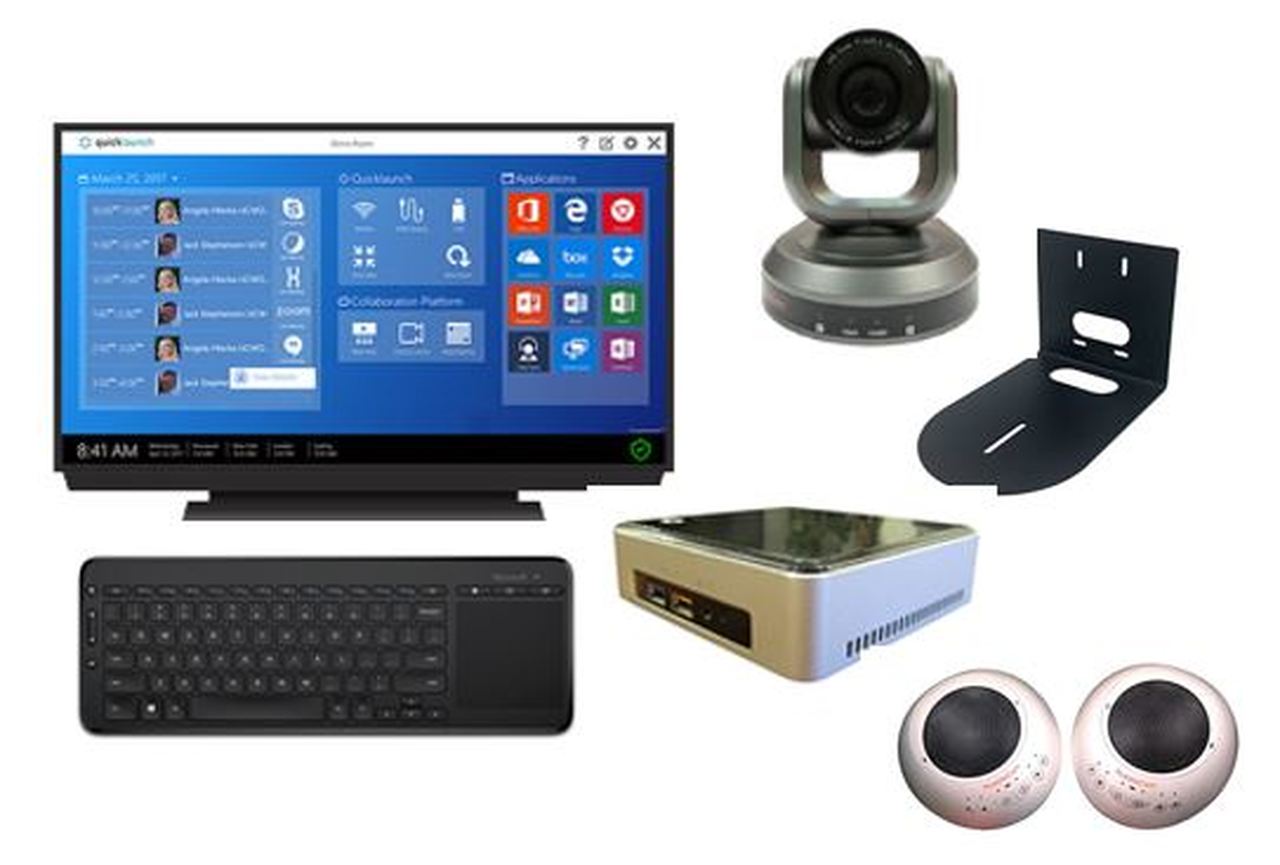

What’s Included:

• HuddleCamHD 10X-G3
• HuddlePod Air2 Duo
• HuddleCamHD Universal Small Mount
• Intel i5 NUC
• Quicklaunch PE
• Microsoft All-in-One Keyboard
• C2G 6′ HDMI Cable

The kit is all tied together with the Quicklaunch PE software. Just as the name entails, you can come into your conference room and quickly launch your applications. Quicklaunch is a highly customizable control interface for “one-touch” meetings. Easily open your application from the menu and start or join your meeting.

Component Details

HuddleCamHD 10X G3 1080p Video Conferencing Camera

• Zoom: 10X Optical
• Resolution: 1920x1080p
• Field of View: 56.3 Degrees
• Frames Per Second: 1080p @ 30 fps
• Connection Cable: USB 3.0
• RS-232: Yes, In and Out
• Presets: 64
• Mounts: Wall and ceiling mounts optional

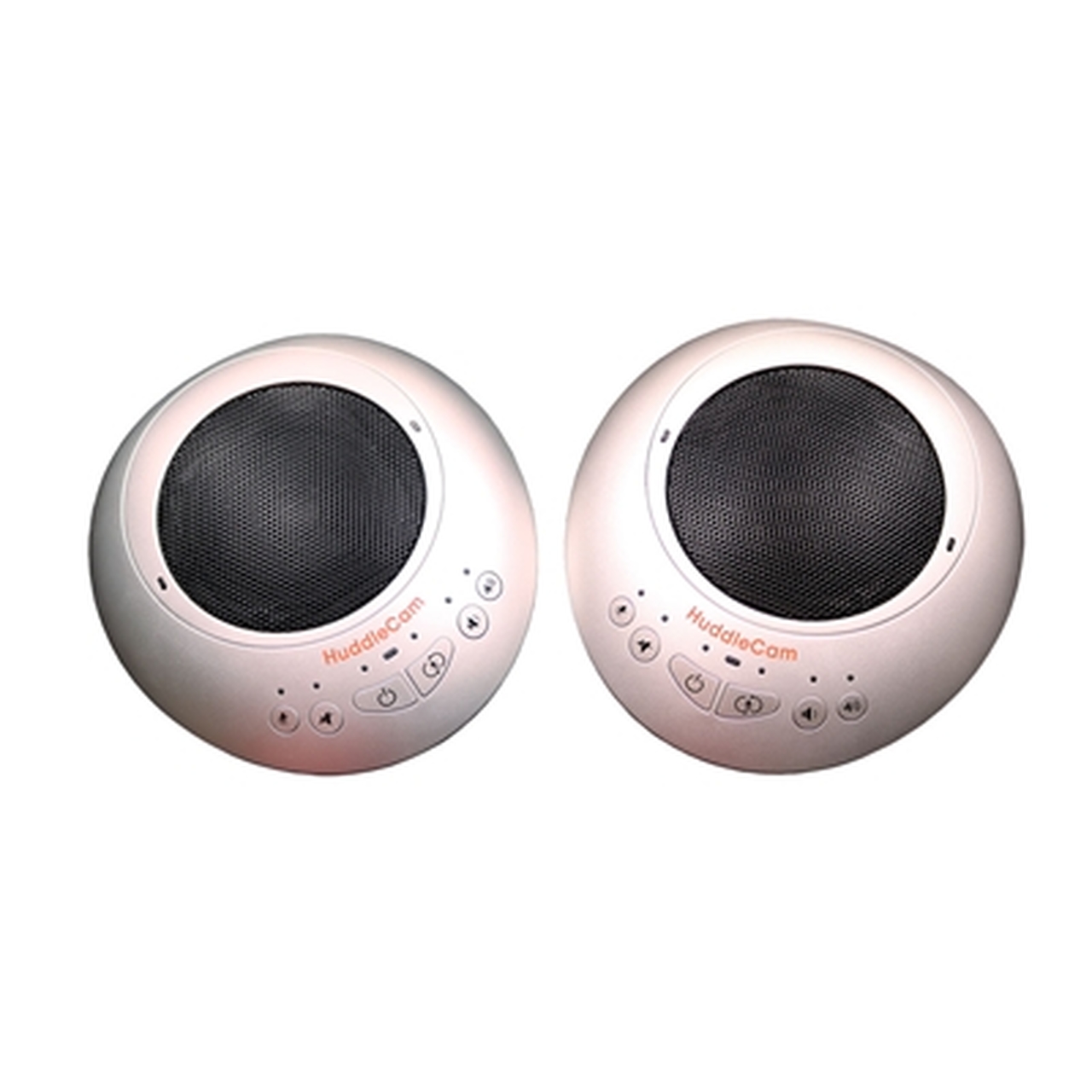

HuddlePod Air2 Duo

• Features two wireless chatpods with up to 30 ft wireless range. Each chatpod features 10 ft microphone pickup
• 8-9 Hour battery life
• 4-5 Hour charge time
• 256 Channel echo cancellation
• 360° omni-directional pickup
• 3.5mm Audio output
• Clear microphone pickup
• 2.4 GHz Wireless connection

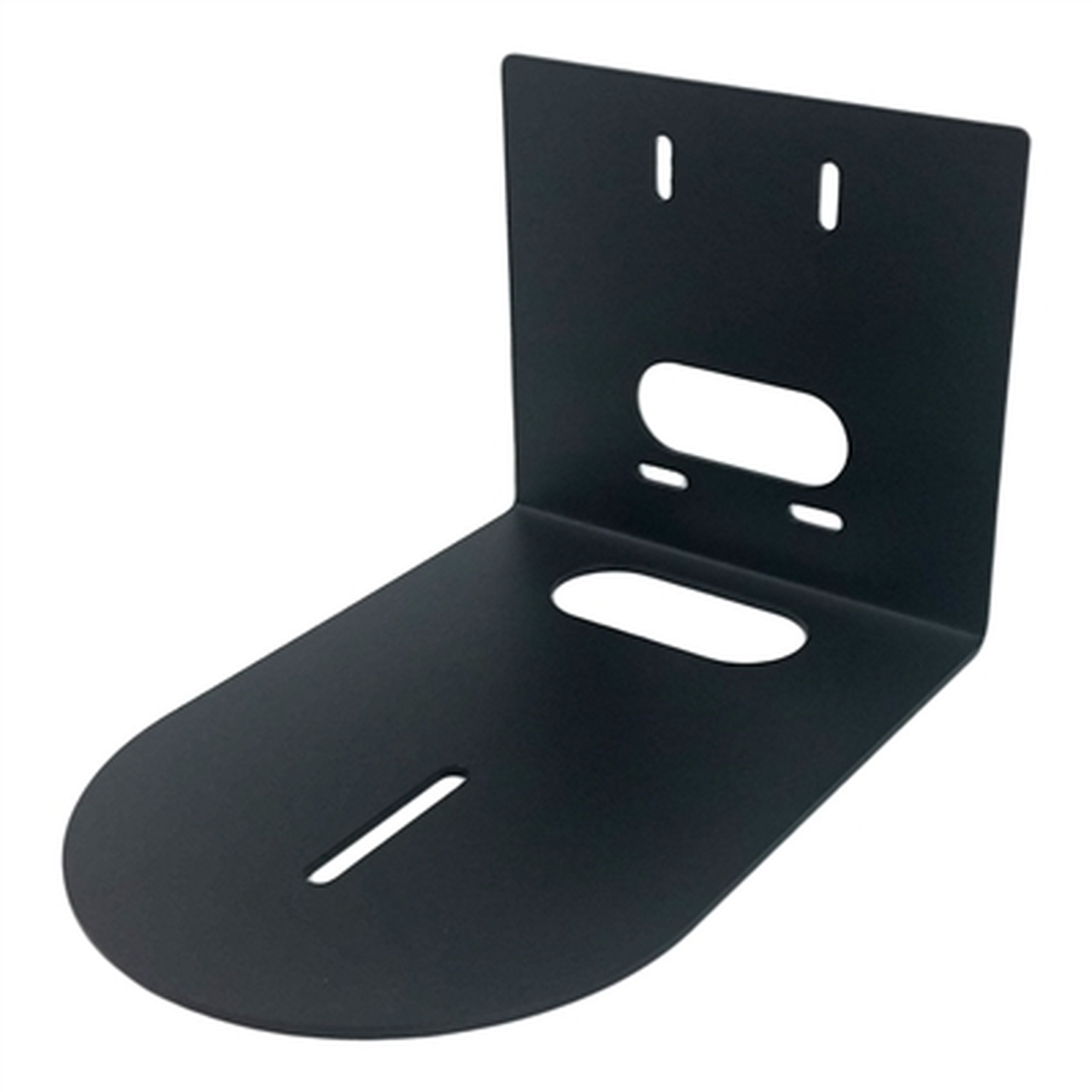

Universal Wall Mount – Small

• Mounts directly to drywall or masonry with the supplied wall anchors or to a 2-gang wall box
• Mounting holes are slotted and opposed by 90° for easy camera leveling
• Black powder coat paint provides an attractive, tough and lasting finish
• Dimensions (base): 5-11/16” (144.5mm) W x 9-5/8” (209.6mm) D x 5-1/8 (130.2mm) H
• Weight: 2.0 lbs, 0.9 kg
• Mounting hardware included

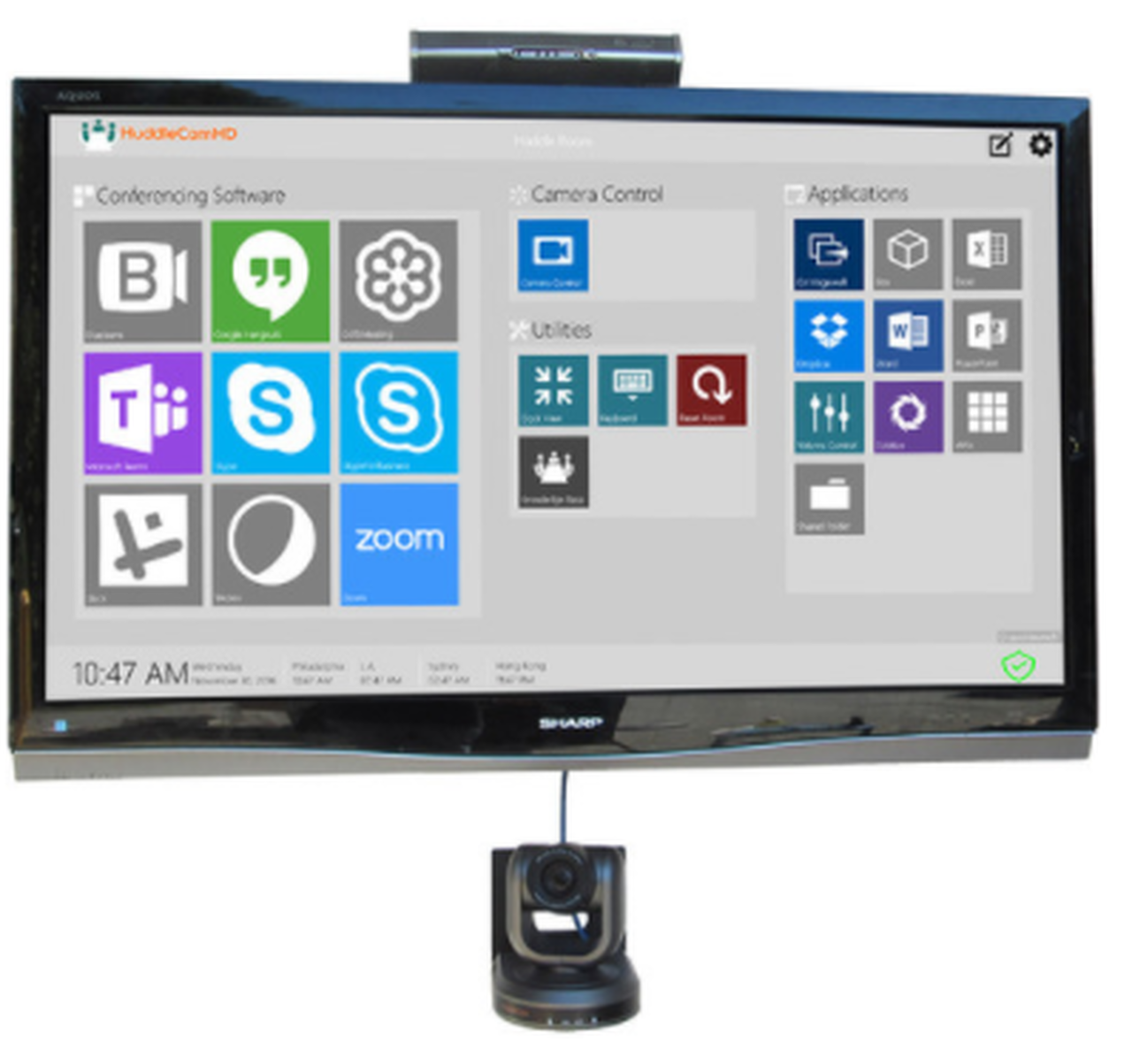

QuickLaunch Professional Edition

• Work space is always ready to go when you are
• Reduces training and support cost by providing a secure and manageable interface
• Optional ability to lock down Intel NUC / Windows OS
• Confidential data secure with the ‘Room Reset’ feature that restores meeting room devices to a clean state
• Quicklaunch is an easy to use, ‘one-click’/’one-touch’ customizable application to join meetings, start applications

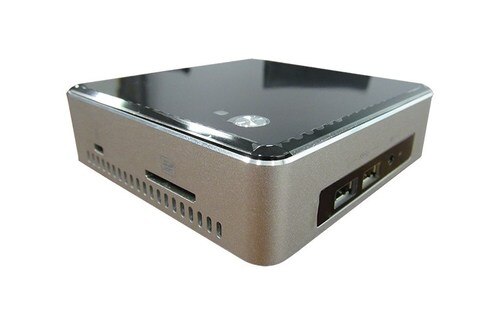

Intel NUC with i5 Processor

• 6th generation Intel® Core™ i5-6260U processor8GB Crucial PC3-12800 RAM
• Samsung 850 EVO 250 GB Internal Solid State Drive – SATA
• Windows 10
• Intel® Iris Graphics Chipset
• Intel® HD Graphics 540
• One Mini DisplayPort and One HDMI port supporting dual independent display capability
• Supports Intel® HyperThreading Technology
• 4 Super-Speed USB 3.0 front panel ports (two back panel ports, two front panel ports)
• Intel® High Definition Audio5 (Intel® HD Audio) via HDMI 1.4b and DisplayPort 1.2 outputs supporting
