This Kit combines the JBL EON615 Powered Speaker and the JBL EON618S Powered Subwoofer with two speaker covers, a speaker pole, and two XLR cables to form the primary components of a sound system for public address, bars, karaoke, schools, church gatherings and more. The EON615 is a 15″ two-way powered speaker system with 1000W of Class D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. The speaker features on-board factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with the EON subwoofer. The EON618S is a powered portable PA subwoofer, designed to deliver high-quality sound reproduction in a variety of applications supporting EON600 and other full range systems. A lightweight, durable enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
The speaker cover is made from a nylon, water resistant, 5mm padded material. It is used to keep out dust, dirt, and help prevent dents and dings during transport. It features a durable 600-D nylon outer fabric and is padded with protective foam layer and a soft tricot lining. Handle cut-outs provide access to the built-in cabinet handles. The subwoofer cover is also a water-resistant 600-D nylon cover with handle-access openings and a 10mm padded protective foam-layer interior. It can be used to protect the subwoofer from dust and dirt during storage and the bumps and bruises during transportation.
The speaker pole connects to the speaker pole socket on a JBL live portable sound subwoofer and supports a JBL speaker top. The XLR cables are designed to suit the most demanding live sound and performance applications.
JBL EON615 Two-Way 15″ 1000W Powered Portable PA Speaker with Bluetooth Control
Designed to deliver high-quality audio, the 15″ JBL EON615 is a highly flexible, easy to use, 1000W powered portable PA speaker for today’s working musicians, singer/songwriters, mobile DJs, and other sound providers.
The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, the EON615 is well equipped to cover an audience of up to 400.
A push button on the back of the speaker allows you to physically switch between four different modes: Main, Monitor, Speech, and Sub for incorporating a dedicated subwoofer to extended low-end performance. There is also a built-in EQ, which is available via the Bluetooth control application for iOS and Android devices.
Two mono inputs, each with a combo mic/line XLR-1/4″ connector, feature individual signal gain knobs and a master volume knob for the overall level. The two mono inputs are mixed to a mono signal internally, while an XLR loop-thru allows you to route the signal to an additional EON600 series speaker for extending the mono signal for better coverage. For a true stereo L/R operation, two EONs are needed with each to receive independent left and right signals respectively.
The highly efficient 1000W Class-D amplifier powers the 15″ woofer and 1″ compression driver, which provide full-range audio (50 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBL’s proprietary Image Control Waveguide offers a 90 x 50° (HxV) coverage pattern and is designed to deliver a more consistent sound to the audience, while keeping the audio off the ceiling and walls. The EON615 includes a power cord.
At a Glance
System type: self-powered 15”, two-way, bass-reflex
Lightweight, rugged polypropylene enclosure can withstand the rigors of on-the-road wear and tear
JBL premium transducers: high-quality 15″ woofer and 1″ compression driver are designed for the EON Series
1000 W highly efficient Class-D amplification is matched to power the JBL transducers
Maximum SPL output: 127 dB provides coverage of up to 300 people
Wide frequency response (50 Hz to 20 kHz ±3 dB) delivers full-range audio performance for an accurate representation of the source material
90 H x 50° V coverage pattern keeps the sound on the audience and off the walls and ceiling
Standard 35mm pole cup with stabilizing screw for use with speaker stands and speaker poles
Wireless Bluetooth Control over DSP
Built-in DSP processor with Bluetooth v.4 control through an iOS or Android control application, EON600 app
Wireless control over the speaker’s 3-band parametric EQ, high- / low-EQ, saving and recalling presets, and adjusting the master volume
Control up to 4 EON speakers with the EON600 app
Disable the speaker’s front LED indicator light
Fine tune the speaker in different acoustic environments
JBL Engineered Presets for Quick and Easy Setup
Main:
Use this setting when your EON615 is being used either on a tripod or pole and facing towards your audience
Monitor:
Use this setting when your EON615 loudspeaker is being used as a stage monitor facing towards you
Sub:
Use this setting when your EON615 loudspeaker is being used in conjunction with a separate subwoofer. This preset enables a High-Pass Filter (HPF) set at 100 Hz
Speech:
Use this setting when your EON615 loudspeaker is being used for Speech only or Spoken Word only applications and is facing towards the audience
Flexible Applications and Configurations
Floor Monitor
Use on its side
Use vertically
Main PA
Suspended from above
Placed on a tripod stand
Placed on a pole mount on top of a subwoofer
Stacked on top of one another using its molded index feet

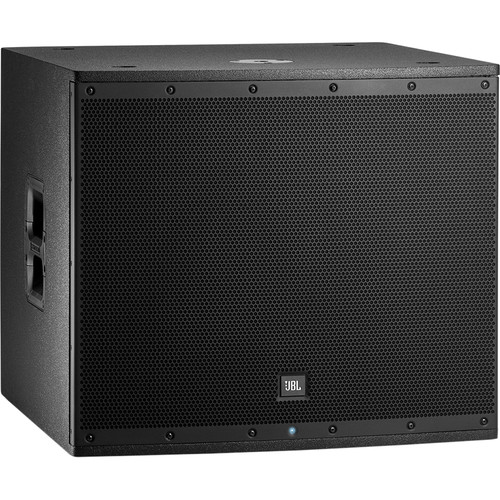

JBL EON618S 18″ 1000W Powered Portable Subwoofer with Bluetooth Control
Designed deliver high-quality bass for the EON600 series full-range tops, the 18″ JBL EON618S is a highly flexible, easy to use, 1000W powered portable subwoofer for today’s working musicians, singer/songwriters, mobile DJs, and other sound providers.
The subwoofer is designed for use with the EON610, EON612, and EON615 speakers, but can also complement any full-range system. The unit can be used in a variety of configurations including center clustered, stereo ground stacks, or use with a speaker pole. When used with main speakers, a pair of EON618S subwoofers are well equipped to cover an audience of 200 to 400.
The rear panel includes a 0/100° polarity switch, which helps with phase issues when placing the subwoofer in less-than-ideal configurations. There is also a built-in EQ and selectable crossover (80, 100, 120 Hz), which is available via the Bluetooth control application for iOS and Android devices.
Two mono line inputs, each with a combo XLR-1/4″ connector as well as a master volume knob for the overall level. The two mono inputs are mixed to a mono signal internally, while an XLR loop-thru allows you to route the signal to an additional EON600 series speaker for extending the mono signal for better coverage.
The highly efficient 1000W Class-D amplifier powers the 18″ woofer, which provides sub-frequency range audio (42 to 120 Hz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. The EON618S includes a power cord.
At a Glance
System type: self-powered 18”, subwoofer
Rugged Duraflex-coated wooden enclosure can withstand the rigors of on-the-road wear and tear
JBL premium transducers: high-quality 18″ woofer
1000W highly efficient Class-D amplification is matched to power the JBL transducer
Maximum SPL Output: 134 dB provides coverage of up to 200 people
Frequency response: 42 to 120 Hz (±3 dB) delivers sub-bass audio performance for an accurate representation of the low-frequency material
Standard M20 threaded pole cup for use with speaker poles
Wireless Bluetooth Control over DSP
Built-in DSP processor with Bluetooth v.4 control through an iOS or Android control application, EON600 app
Wireless control over the speaker’s 3-band parametric EQ, high- & low-EQ, saving and recalling presets, and adjusting the master volume
Control up to 4 EON speakers with the EON600 app
Disable the speaker’s front LED indicator light
Selectable crossover (80, 100, 120 Hz)
Fine tune the speaker in different acoustic environments
Flexible Applications and Configurations
Main PA
Center clustered
Ground stack
Use M20 threaded pole cup with full-range top speakers

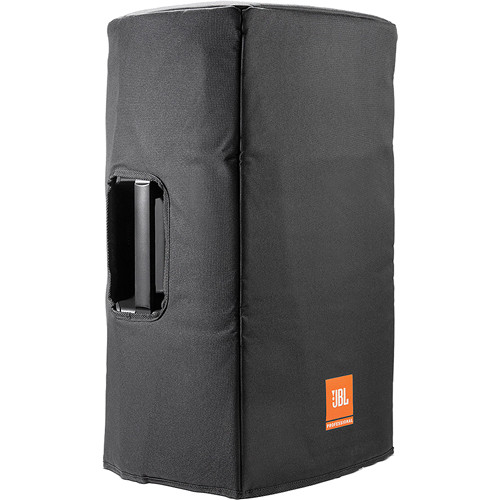

JBL BAGS EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black)
The black EON615-CVR from JBL Professional is a nylon, water resistant, 5 mm padded cover for the EON615 speaker. It is used to keep out dust, dirt, and help prevent dents and dings during transport. It features a durable 600-D nylon outer fabric and is padded with protective foam layer and a soft tricot lining. Handle cut-outs provide access to the built-in cabinet handles. A printed JBL Professional logo is on the front panel. The cover is designed to fit one EON615 Speaker.

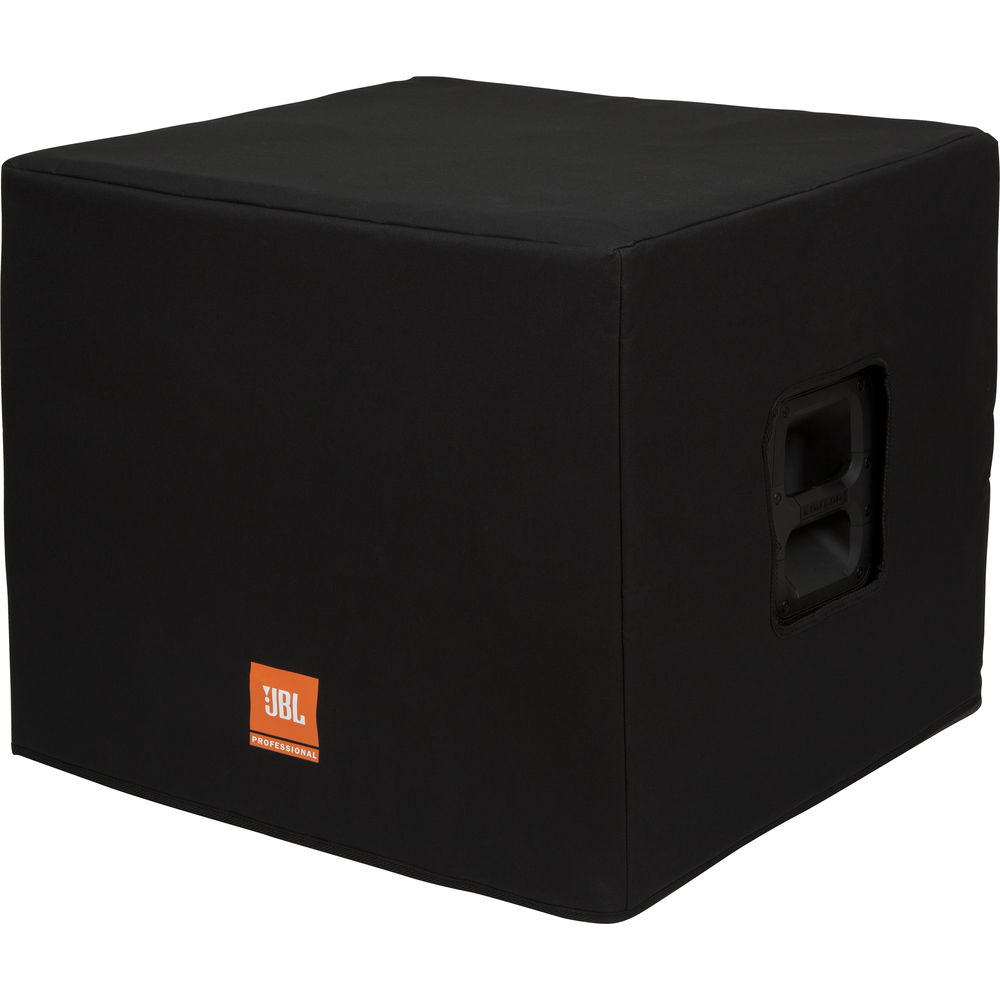

JBL BAGS Deluxe Padded Cover for EON618S
The black Deluxe Padded Cover for EON618S from JBL is a water-resistant 600-D nylon cover with handle-access openings and a 10mm padded protective foam-layer interior. It can be used to protect the speaker from dust and dirt during storage and the bumps and bruises during transportation. There is a printed JBL logo on the front panel.

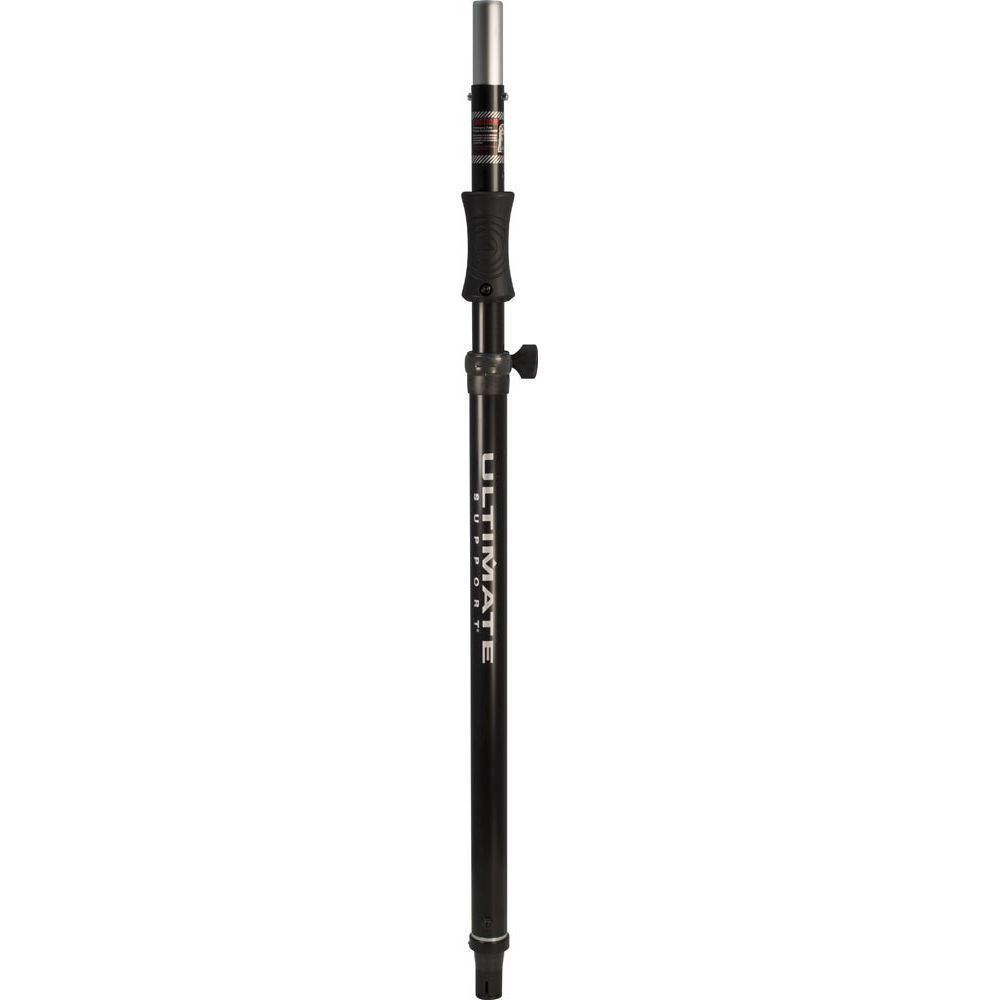

Ultimate Support SP-100 Air-Powered Speaker Pole
The Ultimate Support SP-100 is an air-powered speaker pole that helps raise and lower speaker poles on their own. The Air-Powered Series feature an internal shock that lifts speakers weighing 25 lb or less with no effort and only requires one hand to raise speakers weighing more than 25 lb. The SP-100 features an expanding cylinder that firmly fists speaker sockets from 1-3/8″ to 1-1/2″ diameter. Additionally, the subwoofer attachment can be removed revealing a standard M20 threading, allowing the SP-100 to be a truly universal solution.
Adjustable Speaker Adapter
Universal Subwoofer Adapter
Air-Powered Lift Assist
Over-size Tubing
Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable – 20′ (6.1 m), Black
The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (20′) is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.
Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that’s wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
98% braided shield offers protection from EMI and RFI noise.
Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable’s signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable’s core.
24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
Cotton yarn reduces electrostatic and microphonic noise.
All solder points shrink-wrapped for protection.
Neutrik XX silver connectors offer high conductivity.
Cast zinc shell and chuck style strain relief.
Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable – 10′ (3.0 m), Black
The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10′) is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable’s color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that’s wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
95% dual-spiral shielding offers protection from EMI and RFI noise
Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable’s signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable’s core
24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
Cotton yarn reduces electrostatic and microphonic noise
All solder points shrink-wrapped for protection
Neutrik XX silver connectors offer high conductivity
Caged type contact and improved ground contact
In the Box
JBL EON615 Two-Way 15″ 1000W Powered Portable PA Speaker with Bluetooth Control
Power Cord
Limited 5-Year Warranty for Loudspeaker, Limited 3-Year Warranty on Amplifiers, Limited 2-Year Warranty on Enclosures
JBL EON618S 18″ 1000W Powered Portable Subwoofer with Bluetooth Control
Power Cord
5-Year Warranty for Loudspeaker, Limited 3-Year Warranty on Amplifiers, Limited 2-Year Warranty on Enclosures
JBL BAGS EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black)
2-Year Warranty
JBL BAGS Deluxe Padded Cover for EON618S
Limited 2-Year Warranty
Support SP-100 Air-Powered Speaker Pole
Universal Subwoofer Adapter (Attached)
Lifetime Warranty against Manufacturer Defects
Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable – 20′ (6.1 m), Black
3-Year Warranty
Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable – 10′ (3.0 m), Black
3-Year Warranty
