Record from and manage up to 32 cameras with the N881A38B 32-Channel 4K UHD NVR with 8TB HDD from Lorex at resolutions up to 3840 x 2160 via 16 PoE ports and an included 16-channel PoE switch. Equipped with two SATA ports, this NVR can support up to 20TB of internal storage. An 8TB HDD storage is preinstalled. H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible.
This NVR features HDMI and VGA outputs to connect to external monitors. The Lorex Cloud app enables remote management via your iOS or Android device.
Features
HDMI and VGA video outputs
HDMI cable included
16-channel PoE switch included
H.265 and H.264 video codecs
Person/vehicle motion detection
Smart Search feature to filter motion events by time/date, area, person, or vehicle
Two USB 2.0 ports
Four alarm inputs and two alarm outputs
RCA audio input and output
RS-232 port
Lorex Cloud app for iOS and Android
24/7 security-grade preinstalled 8TB HDD
HDD storage expandable to 20TB
Supports mirror hard drive recording for data backup
Backup via USB flash drive or USB HDD
System navigation via included USB mouse and front panel buttons
Firmware upgrades via USB/network
Optional DDNS
Watchdog function for automatic recovery after power failure

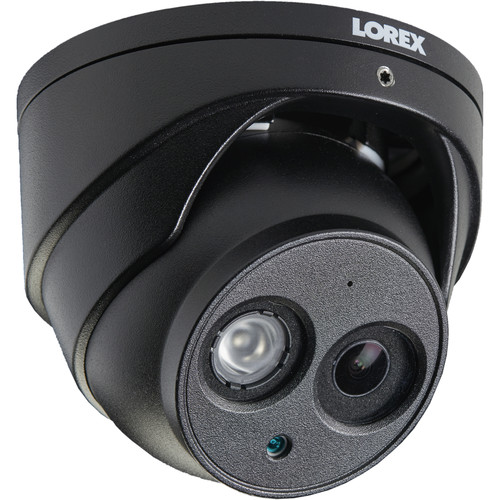

Lorex LNE8950AB 4K UHD Outdoor Network Dome Camera with Night Vision
The black LNE8950AB 4K UHD Outdoor Network Dome Camera from Lorex uses a 1/2.5″ Sony Exmor R progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 15 fps. A single IR LED provides up to 200′ of night vision. The camera’s 2.8mm fixed lens delivers a 113° horizontal field of view. Audio capture is possible thanks to a built-in microphone. Integrated POE technology allows data and power to be transferred via one cable.
This dome camera complies with ONVIF profiles S & T, making it compatible with a wide range of surveillance devices. A mounting kit is included for installation. The camera is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use.
Color Night Vision and back-illuminated pixel technology help produce clearer images in low-light conditions
IR cut filter for day and night functionality
2 x 100° IR LED viewing angle
H.265, H.264, and MJPEG video compressions
Electronic shutter
16x digital zoom
Fixed iris
16:9 aspect ratio
HDR support
Auto white balance
3D-DNR
Privacy masking
Motion detection for up to four zones
90, 180, and 270° custom video orientation
Flip and mirroring
PoE technology enables the camera’s video and power to be transmitted up to 300′ from the NVR with a single Ethernet cable (300′ cable available separately)
Lorex 16-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch
Expand your surveillance capacity by integrating the Lorex 16-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch into your network security system. Featuring a 220W power budget across 16 35W 10/100 Mb/s ports, this unmanaged switch is designed to efficiently operate an array of IP cameras. You can also use it to bridge the distance between your cameras and your network video recorder to minimize the amount of cabling. The switch supports cables up to 300′ long to connect its Gigabit Ethernet port to a router. Each port can provide up to 30W of power, so you can connect up to 16 15W class 3 security cameras, or up to eight 30W class 4 cameras, or a combination of both totaling up to 220W. Simply connect the switch to your router, then attach and configure the IP cameras, and you’re all set up.
In the Box
Lorex N881A38B 32-Channel 4K UHD NVR with 8TB HDD
16-Channel PoE Switch
Ethernet Cable
HDMI Cable
USB Mouse
Power Adapter
2-Year Warranty for NVR
90-Day Warranty for Included Accessories
24 x Lorex LNE8950AB 4K UHD Outdoor Network Dome Camera with Night Vision
Mounting Kit
Mounting Template
Cat 5e Ethernet Cable
2 x Mounting Screws
2 x Drywall Anchors
Allen Key
1-Year Warranty for Camera
90-Day Warranty for Included Accessories
Lorex 16-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch
Power Cable
2-Year Warranty
