Record and stream your services with this all-in-one Panasonic HD Video Switching Kit put together, Since reaching a wider audience over the internet is essential in today’s world, this all-in-one kit includes everything you need to start recording, editing, and sharing your services using social media sites, streaming media servers, and other video distribution media.
The kit includes three black Panasonic PTZ cameras, which capture crisp, high-resolution images, high-quality audio, and they each feature a powerful 20x zoom lens. All three can be remotely controlled using the included Panasonic camera controller, and it supports up to five cameras if you choose to add more. The included Roland Video Switcher allows you to switch between camera sources on your live feed and add effects like fading in and out, and the included production monitor allows you to preview your video feed. You can output your video using the included Magewell USB capture unit that connects to your computer for editing and sharing your footage. The included Ubiquiti Gigabit Ethernet switch allows you to connect your entire production setup on your local network.
Panasonic 20x Zoom 4K PTZ Camera with 3G/HD/SD-SDI & HDMI Output and NDI (Black)
The black Panasonic 20x Zoom 4K PTZ Camera with 3G/HD/SD-SDI & HDMI Output and NDI Output 4K UHD, HD, and SD video over a variety of connections. It features a 1/2.3″ 3MOS sensor and outputs over 3G/HD/SD-SDI, HDMI, or you can use the NDI protocol to stream video and audio, control (IP), tally, and power over a single Ethernet cable. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.
Equipped with a 20x optical zoom, 30x iZoom, and 12x digital zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full HD PTZ camera uses Night Mode to capture clear images in monochrome. The camera supports audio input, allowing you to capture and embed audio within the video signal. It is PoE+ compatible, allowing you to power the unit using only the single LAN cable.
NDI|HX
NDI (Network Device Interface) goes beyond simply sending video over IP, and instead of just encoding video to travel along Ethernet cable, NDI also encodes control, tally, and PoE+. In addition to having to run fewer cables without needing to route power, video, and control to each camera location, now you can connect your camera to your network and have full control. NDI|HX brings automatic discovery, ultra-low latency video transmission, PTZ control and tally, all with a single Ethernet cable.
IP Live Preview
Simultaneous Multi-Stream
Electronic Image Stabilization
Night Mode (for IR)
Dynamic Range Stretch
Audio Input / Embedding
Color Temperature Adjustment
Up to 100 Presets
microSD Card Recording
HDR
Fanless Design
Digital Noise Reduction
Genlock
ND Filters

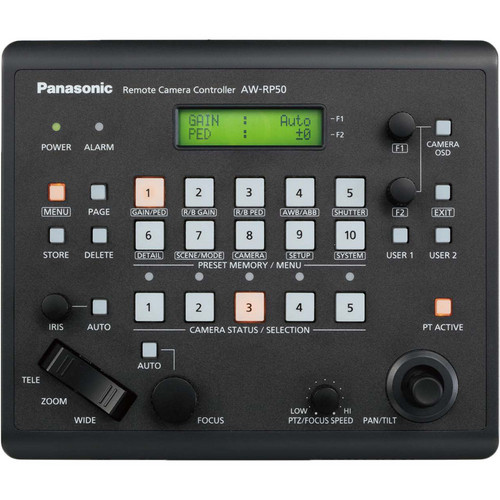

Panasonic Remote Camera Controller
The Panasonic Remote Camera Controller uses serial and IP control to support Panasonic pan/tilt heads, integrated, and box cameras. Simple to set up and operate, the controller offers automatic IP setup and can be configured via your PC.
Using the Remote Camera Controller, you can control 1 camera simultaneously with up to 5 AW-RP50 via IP or serial control. It also allows you to control up to 100 AW-HE50S/H units via an IP connection when using a network hub (switching hub). The Automatic IP Address Setup function automatically assigns IP addresses to the AW-HE50S/H or AW-HS50 units. Camera functions including pan/tilt, zoom, focus, iris, gain, pedestal, shutter, white/black balance, and switch scene files can be adjusted remotely via the device. The controller is subcompact at 8.26 x 2.63 x 6.96″ (210 x 67 x 177 mm) and weighs 2.4lb (1.1kg). Ergonomically designed, the controller is ideal for use in remote production, educational purposes, and houses of worship use.
Uses serial and IP control to support up to 5 Panasonic pan/tilt heads, integrated, and box cameras
Simple to set up and operate and offers automatic IP setup
Can be configured via your PC
Allows you to control up to 100 AW-HE50S/H units via IP connections when using a network hub (switching hub)
Allows you to control 1 remote camera simultaneously by up to 5 AW-RP50 units via IP connection or serial control
Automatic IP Address Setup function – allows IP addresses to be automatically assigned to the AW-HE50S/H or AW-HS50 units
Adjustable camera functions – pan/tilt, zoom, focus, iris, gain, pedestal, shutter, white/black balance, and switch scene files
Subcompact 8.26 x 2.63 x 6.96″ (210 x 67 x 177 mm)
Ergonomically designed
Ideal for use in remote production units, education institutions, and houses of worship
Weighs 2.4lb (1.1kg)
UPC: 885170023499

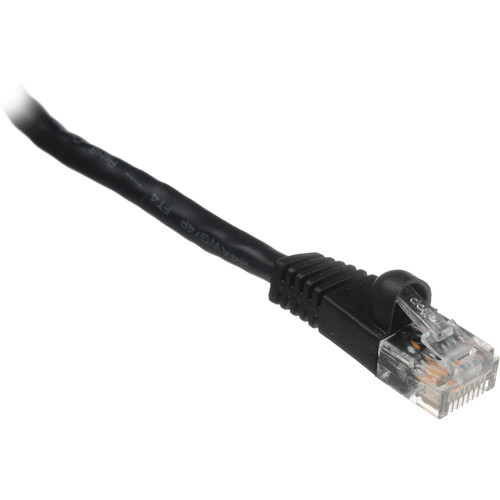

Comprehensive 100′ (30.5 m) Cat6 550MHz Snagless Patch Cable (Black)
The 100′ (30.5 m) Cat6 550MHz Snagless Patch Cable (Black) from Comprehensive is an Ethernet patch cable, suitable for use in professional network installations. It features a male-to-male design, using standard gold-plated RJ-45 connectors on each end. The cable’s 550MHz greatly reduces loss when compared to standard 1000MHz cable. It is suitable for use in Gigabit Ethernet networks.
Gold-plated RJ-45 connectors
Cat6 cable meets high-speed 550MHz standard
Features 24awg stranded construction
Compliant with all Category 6 568B 2.1 Draft 9 TIA/EIA standards
Snagless boot design ensures easy installation
X-traflex jacket is strong and flexible
RoHS compliant
UL rated
Backed by a Limited Lifetime Warranty

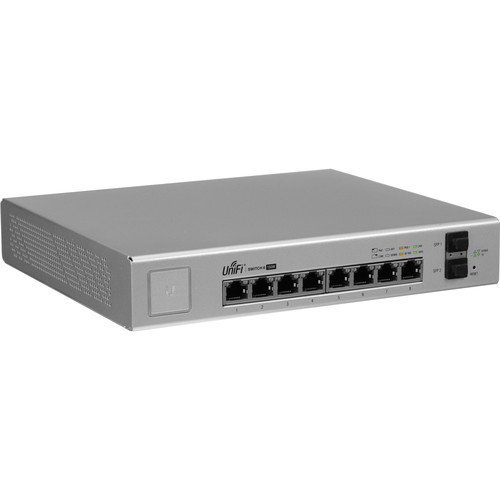

Ubiquiti Networks UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W)
With the UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more. Once installed, this switch supports Ubiquiti’s own UniFi Controller simplifying the process of managing network resources, switch configurations, port statuses, and much more.
Auto-sensing IEEE 802.3af/at PoE
8 x Gigabit RJ45 ports, 2 x SFP ports
Non-blocking throughput of up to 10 Gb/s
Switching capacity: 20 Gb/s
Forwarding rate of up to 14.88 Mp/s
Maximum power consumption of 150 W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Desktop mountable
Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.

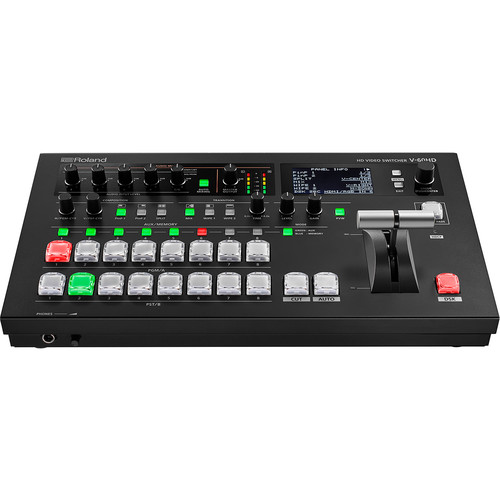

Roland V-60HD Multi-Format HD Video Switcher
The Roland V-60HD Multi-Format HD Video Switcher is a true multi-format video switcher, meaning it doesn’t require input sources to be matched to output resolutions. Suitable for a variety of live venues, including but not limited to corporate, education, house of worship, and theater. The V-60HD enables live switching of HD and computer video formats without requiring external scan converters. It supports up to eight inputs with four SDI, two HDMI, plus two still image files. The HDMI inputs support video and computer resolutions, allowing you mix video and computer graphic formats. Two SDI and two HDMI-assignable outputs support program, preview, and auxiliary busses, allowing you to easily send discreet outputs to separate displays. The HDMI multiview output enables viewing your eight inputs, as well as program and preview, on a single monitor with audio level display.
The panel incorporates illuminated buttons that follow red/green PGM/PST color schemes, and a T-bar for manual control of transitions. A built-in 3″ LCD screen provides menu access for adjusting the switcher’s parameters. Signal processing is 4:2:2 at 8-bits. Effects include a downstream keyer with quick edit knobs for key level and gain control. An 18-channel mixer supports inputs from four XLR/1/4″ phone combo jacks (supporting phantom power), as well RCA jacks in addition to six channels of audio de-embedded from the incoming video. It features a built-in tally system with GPI in the connector, and supports both RS-232 and Ethernet for control.
Live Event and Streaming
The V-60HD combines the best of live event production and streaming, including SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet, and other video sources. The switcher incorporates XLR and RCA analog inputs, as well as de-embedded audio from digital SDI or HDMI sources. A variety of video connections with a Program and Aux bus makes the V-60HD well suited for a variety of live event production and streaming applications.
Live Production
The V-60HD is portable and small enough to be used in locations that vary in size, from an intimate office to exterior meeting locations.
The four SDI inputs and two HDMI inputs enable switching camera and computer sources at the same time for dynamic presentations.
The deinterlacer built into the SDI inputs allows you to mix and match 1080i and 1080p SDI sources and multiple cameras without external converters.
Using the V-60HD’s auto-mixing function enables automatic balancing of audio levels from multiple microphones and video sources, freeing up the operator to focus on switching the video for the event.
Multi-destination outputs include Program, Preview, and AUX buses, making it easy to send the main output to the primary screen, stream live, and send notes to a presenter’s monitor.
Audio auto-mixing automatically adjusts audio levels, ensuring even levels for the room mix, presenter, the live stream, or in-room speakers.
The multichannel audio embed function can be used to record eight discreet audio channels to an SDI video recorder, allowing you to fix audio issues or separate multi-language audio sources later in post. The V-60HD’s user interface is easy for novices and can be controlled remotely through the LAN port using Roland’s Remote-Control Software for PC or Mac. For fixed installations, the V-60HD functions can be remotely controlled through the RS-232 port.
Professional User Interface
The switcher features:
Professional broadcast cross-point buttons with PGM/PST LED color indicators.
A rugged T-bar; DSK quick-edit knobs for key level and gain.
Two dedicated PiP and Split buttons with knobs for center framing of Split and PiP placement.
You can change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob.
A 3″ front-panel LCD display with quick-access menu navigation allows you to adjust switcher parameters.
AUX Bus
A dedicated AUX bus can be assigned to any of the four discreet SDI or HDMI outputs, providing seamless switching from the eight-input channels (four SDI, two HDMI, or one RGB and two still images).
Audio Mixing
The V-60HD utilizes preamp as well as dynamic effects that include a high-pass filter, gate, compressor, three-band EQ, delay, and ability to select audio-follows-video channel so audio passes through when a specific video source is selected. Dynamics can be adjusted from the onscreen menu or accessed through the Remote-Control Software for Windows or Mac.
Multichannel Audio Embedding
Assign up to eight analog audio inputs to a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect (dry) or post effect (wet) for correcting audio problems after the live event. This feature is additionally useful during multi-language events for recording the voice-over or language translation on its own audio channel to a separate master.
Smart Tally
Roland’s proprietary wireless tally system uses a wireless LAN router connected to the V-60HD to send tally information to iOS or Android devices on the network.
Resolutions up to 1080p
The inputs and outputs support resolutions up to 1080p59.94 (1080p50 for PAL) or 1920 x 1200 computer resolution.
Effects
Downstream keyer composites logos and text into output video
Mix, Cut, and Wipe (30 patterns)
Picture-in-Picture
Flip horizontal
Output fade
Still image capture
Still image playback
Test pattern output
Canare 100′ L-3CFW RG59 HD-SDI Coaxial Cable with Male BNCs (Black)
This 100′ black L-3CFW RG59 HD-SDI Coaxial Cable with Male BNCs from Canare is a hand-crafted, high-quality conveyance for video signals and serial data up to (and even over) 3.0 Gb/s. Exceeding the requirements specified in SMPTE 424M, it’s perfect for 3G-SDI and HD-SDI video systems.
Featuring a true 75 male BNC connector at either end, the extra-flexible 6′ cable is great for applications that will move it around a lot, such as mobile HD production. Offering professional broadcast performance, the HD-SDI cable is also perfect for any HDTV upgrade.
Canare BCP-B Series true 75 HD BNC connectors
100% sweep-tested to conform to SMPTE 259M, 292M, and 424M standards
Hand-made with Canare L-3CFW 22 AWG, 75 precision HD serial digital video coax cable for professional broadcast performance
Cables meet SMPTE 259M, 292M, and 424M standards
Dual copper braid for flexibility and great bending performance
Magewell USB Capture SDI 4K Plus
The Magewell USB Capture SDI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via a 6G-SDI input. It also features a 6G-SDI loop-through for local monitoring, and 3.5mm audio input and output for capturing external audio and extracting embedded audio. It’s compatible with Windows, Mac, Linux, and Chrome operating systems.
The card offers a variety of processing and other features, including resolution scaling and deinterlacing. It’s capable of operating 24 hours a day, 7 days a week while displaying the status of the input via an LED indicator (idle, input signal locked, memory failed, or FPGA configuration).
Note:
Please use the included Magewell USB 3.0 cable, which is a custom accessory. Using any other similar cable might cause capture problems and even damage the capture device.
Key Features
SDI input and loop-through, audio in/out, USB 3.0 computer interface
Capture 6G/2K/3G/HD/SD-SDI signals (up to 4096 x 2160)
Compatible with Windows, Mac, Linux, and Chrome OS
Plug-and-play operation
UVC protocol support
Up/down scaling
Deinterlacing
Image control
Various output color spaces
Firmware upgradeable
Multiple devices on one host
24/7 continuous operation
Included USB Capture Utility V3
Capture format setting
Audio volume control
Mirror and flip
EDID editing and importing
Firmware update
Export diagnose report
Other functions, such as cropping, deinterlacing, and device name setting
SDI Specific Features
Integrated cable equalizer supporting cable lengths up to 492 ft for HD signals
SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
4K (4096 x 2160) and 2K (2048 x 1080) modes
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
10/12-bit color depth
Extraction of SMPTE 352 payload identifier
Up to 8 (mono) audio channels at 48 kHz
Extraction of audio formation information and channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit: captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)
Analog Audio Features
Extract the embedded SDI audio and output via a 3.5mm unbalanced Line out jack
Capture analog audio via 3.5mm unbalanced Line in jack
Video Capture Formats
Image resolutions up to 4096 x 2160
Capture frame rates up to 120 fps (actual capture frame rate can be limited by USB bandwidth and internal working frequency; typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 at up to 90 fps, and 3840 x 2160 NV12 at up to 30 fps)
NV12 and I420 4:2:0 8-bit (up to 4096 x 2160)
YUY2 and UYVY 4:2:2 8-bit (up to 4096 x 2160)
RGB24 and RGB32 4:4:4 8-bit (up to 2048 x 2160)
Default capture formats are YUY2 and NV12; more capture formats can be set using the included USB Capture Utility software
Video Processing Features
Video processing pipelines with 640 megapixels processing bandwidth
Cropping
Scaling
Frame rate conversion
Vertical flip and mirror
Video Deinterlacing
Weave
Blend top and bottom field
Top field only
Bottom field only
Aspect Ratio Conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
Color Format Conversion
Auto or manual selection of input color format and quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Support for RGB, YCbCr 601, and YCbCr 709 color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range
Multiple Devices On One Computer
Connect multiple units to one system
Set the device serial number as the device name shown in the system using the USB Capture Utility
SDK
USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Canare 12G-SDI UHD 4K Single-Channel BNC Cable (6′)
Canare’s 12G-SDI UHD 4K Single-Channel BNC Cable, 6′ long, is designed for connecting 12G-SDI rated cameras and equipment and carrying a UHD 4K signal. The cable features nickel body 75-ohm connectors with gold-plated contacts and highly foamed PE insulation for optimal attenuation. It’s suitable for studios, mobile trucks, and installations among virtually all other applications.
Key Features
12G-SDI / UHD 4K coaxial cable
Canare 12G 75-ohm nickel body BNC connectors with gold-plated contacts
Solid annealed copper 16 AWG center conductor
Highly foamed PE insulation
Panasonic 16.5″ Full HD Rack-Mountable Production Monitor
The 16.5″ Full HD Rack-Mountable Production Monitor from Panasonic is a 10-bit IPS LCD panel which features 3G/HD/SD-SDI, HDMI, and composite inputs, Full HD resolution, and a 1500:1 contrast ratio. The monitor runs on universal 100 to 240 VAC or 10.5 to 18 VDC power.
16.5″ IPS LCD panel with 10-bit processing
Supports Full HD (1920 x 1080) resolution
3G-SDI, HDMI, and composite analog input terminals
Waveform monitor and vectorscope
Timecode (VITC/LTC) displays
HD closed caption displays (free update)
Still frame display (frame grab)
Built-in test patterns
Selected image section can be displayed in an enlarged size
Up to 100 types of user markers
Shadow function: Shadow can be applied to the area outside of marker areas
Picture capture
Embedded audio input/output
Audio meters
AC/DC/battery drive
In the Box
3 x Panasonic 20x Zoom 4K PTZ Camera with 3G/HD/SD-SDI & HDMI Output and NDI (Black)
Mounting Bracket
AC to DC Adapter
1-Year Warranty
Panasonic Remote Camera Controller
Operating Manual
CD-ROM (Operating Instructions & Setup Software)
AC Adapter
Power Cable
1-year Warranty for Parts & Labor
3 x Comprehensive 100′ (30.5 m) Cat6 550MHz Snagless Patch Cable (Black)
Lifetime Warranty
Ubiquiti Networks UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W1-Year Warranty
Roland V-60HD Multi-Format HD Video Switcher
Power Supply
1-Year Warranty
3 x Canare 100′ L-3CFW RG59 HD-SDI Coaxial Cable with Male BNCs (Black)
1 Year Limited Warranty (Repair or Replacement Against Manufacturer Defects) + 30-Day Money Back
Magewell USB Capture SDI 4K Plus
USB 3.0 Cable
3-Year Warranty
2 x Canare 12G-SDI UHD 4K Single-Channel BNC Cable (6′)
1-Year Warranty
Panasonic 16.5″ Full HD Rack-Mountable Production Monitor
Stand
AC Power Cable
1-Year Warranty
Panasonic Tiltable Stand for BT-LH1770 LCD Monitor
Reviews
There are no reviews yet.
