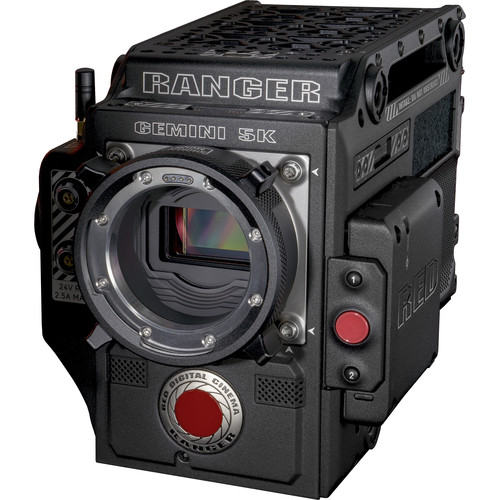

RED DIGITAL CINEMA RED RANGER with GEMINI 5K S35 Sensor (V-Mount)

Configured for rigorous studio use, the versatile PL-mount RED RANGER with GEMINI 5K S35 Sensor is a 5K solution from RED DIGITAL CINEMA for rental house and high-end production use, as well as for individual users. Built around the GEMINI 5K S35 15.4MP CMOS sensor, this kit features a shimmed PL mount, a V-mount battery plate, integrated I/O ports including 12 and 24V output, additional SDI and AUX power outputs, built-in 5-pin XLR audio input, and improved fan and thermal performance.

The GEMINI 5K S35 offers a wide dynamic range of 16.5+ stops and improved image quality with exceptional shadow detail. Use full-frame lenses to capture cinematic images at rates up to 75 fps in 5120 x 3000 5K, 120 fps in the 2.4:1 5K aspect ratio, 120 fps in 4K full format, and up to 300 fps in 2K 2:4:1 aspect ratio.

Record full-frame video in REDCODE RAW (R3D) and ProRes or DNxHR/HD simultaneously, or capture minutely detailed 15.4MP still images. With greater resolution than 4K capture and over 17x more than HD, the GEMINI 5K S35 provides the detail that enables cropping, re-centering, and additional tweaking during post while maintaining vivid, crisp imagery. Data rates of up to 300 MB/s can be reached when using 480 or 960GB MINI-MAGs, or up to 225 MB/s with 120 or 240GB MINI-MAGs (available separately).

In addition to the PL-mount RED RANGER BRAIN, this kit includes a BRAIN case, the Production Top Handle, a 24 VAC adapter and power cable, and compatible hex and Torx tools.

Key Features
15.4MP, 30.72 x 18.0mm full-frame CMOS sensor for up to 5K-resolution images
16.5-stop dynamic range, with improved image quality and greater shadow detail
Multiple capture rates including up to 60 fps 5K, 120 fps in 4K, and 240 fps in 2K full format
Versatile workflow options with REDCODE RAW, ProRes, and DNx recording
Durable aluminum body
Up to 300 MB/s data rates with separately available 480 or 960GB, or 225 MB/s with 120 or 240GB MINI-MAGs
Integrated 5-pin XLR audio input
Kit Items
PL lens mount with shims
Production top handle
V-mount battery plate
24 VAC adapter with cable
Hex and Torx tools
BRAIN case

In the Box
RED DIGITAL CINEMA RED RANGER with GEMINI 5K S35 Sensor (V-Mount)
RED RANGER BRAIN with GEMINI 5K S35 Sensor
RED RANGER BRAIN Case
Production Top Handle
LCD/EVF Adapter D
24 VAC Adapter with 3-Pin, 24V XLR Cable
PL Mount with Shims
Hex and Torx Tools
Limited 2-Year Warranty
