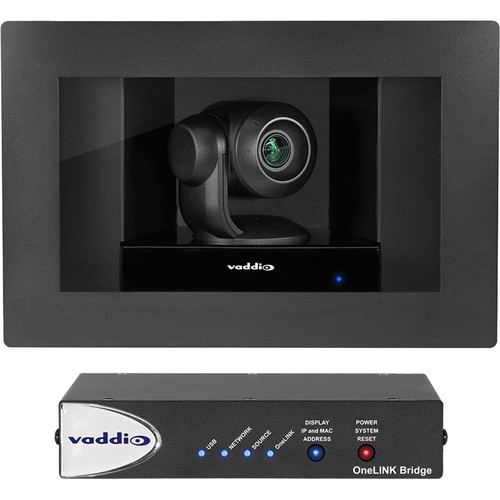

Vaddio RoboSHOT In-Wall Clear Glass OneLINK Bridge System (Black)

Capture conversations or video conferencing in corporate board rooms, law offices, or any room setting where interior design is a consideration with the black RoboSHOT In-Wall Clear Glass OneLINK Bridge System from Vaddio. The semi-flush-mounted camera supports up to 1080p at 60 fps resolution and is enclosed behind a tempered safety glass providing protection for high-traffic areas, classrooms, or multipurpose rooms where cameras might be subject to tampering. Paired with the OneLINK bridge A/V interface receiver, you can bridge a non-USB camera and audio source to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom.

Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328′.

Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
Connects professional A/V equipment to PC applications via USB 3.0 media stream
Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
Two balanced audio inputs and two balanced audio outputs
Control via web interface or Telnet
Status lights

Capture conversations or video conferencing in corporate board rooms, law offices, or any room setting where interior design is a consideration with the black RoboSHOT IW In-Wall HDBT Recessed HD PTZ Camera System from Vaddio. This semi-flush-mounted camera supports up to 1080p at 60 fps resolution and is enclosed behind a tempered safety glass providing protection for high-traffic areas, classrooms, or multipurpose rooms where cameras might be subject to tampering.

The camera features a wide dynamic range with color adjustment and a web-based user interface for camera control. The camera can be powered by a PoE+ network switch, a Midspan power Injector for an IP streaming configuration, or connected to an HDBaseT video switch. The OneLINK system extension provides a variety of video output options such as HD-SDI, HDMI, USB 3.0, and IP streaming.

Provides privacy and puts room attendees at ease with clear indication of camera status
Recess-mounted making it compliant with the Americans with Disabilities Act (ADA) standards for accessible design
Pair with OneLINK bridge to pass high-resolution video over USB 3.0, HD-SDI, HDMI, and IP streaming; also supports USB 2.0
Telnet or IP remote management
Backlight compensation
Auto, manual, or one-push white balance
Remote management via RS-232, API: Modified VISCA, Telnet Serial Command API, browser-based user interface for network setup, firmware updates and network management, and Vaddio DocCAM IR Remote
RTSP format with H.264 compression with AAC audio compression when used with advanced OneLINK interfaces
6-step noise reduction
Wide dynamic range
Automatic or manual adjustment of image color, shading, backlight, and wide dynamic range to optimize color in different settings
Compatible Joystick and Video Control Consoles
ProductionVIEW, precision camera controller, ProductionVIEW HD-SDI MV, AV Bridge MATRIX PRO, and PCC Premier

In the Box
Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
Power Supply
4 x 3-Position 3.5mm Phoenix Plug
USB Cable (6′)
RS-232 Adapter
2-Year Warranty
Vaddio RoboSHOT In-Wall Clear Glass PTZ Camera System (Black)
Black Front Frame with Clear Glass
Interior Side Plate, Right Side
Interior Side Plate, Left Side
Fastening and Mounting Hardware for Drywall Installation
Vaddio IR Remote Commander
2-Year Warranty
