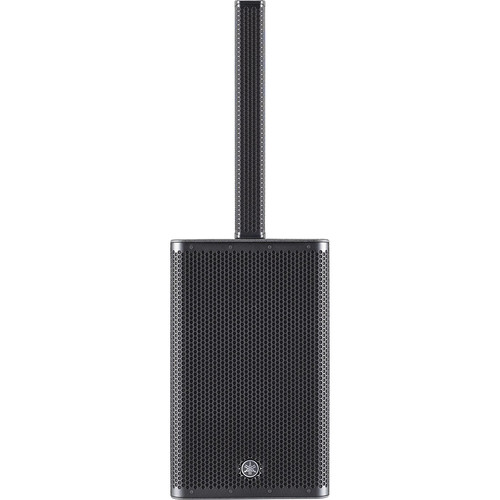

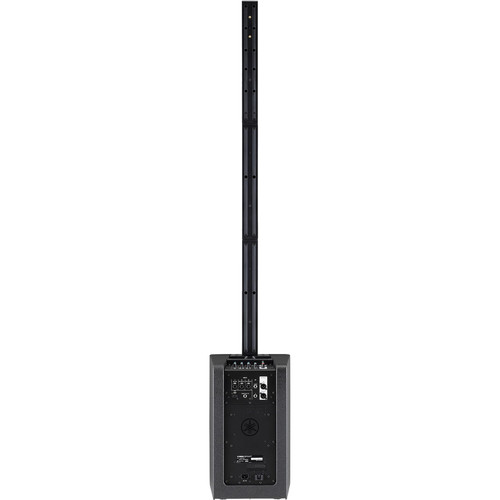

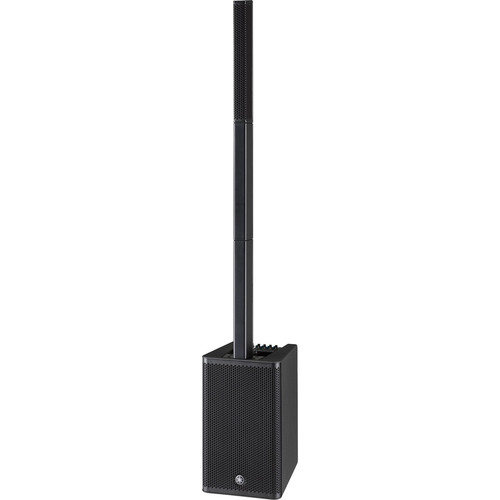

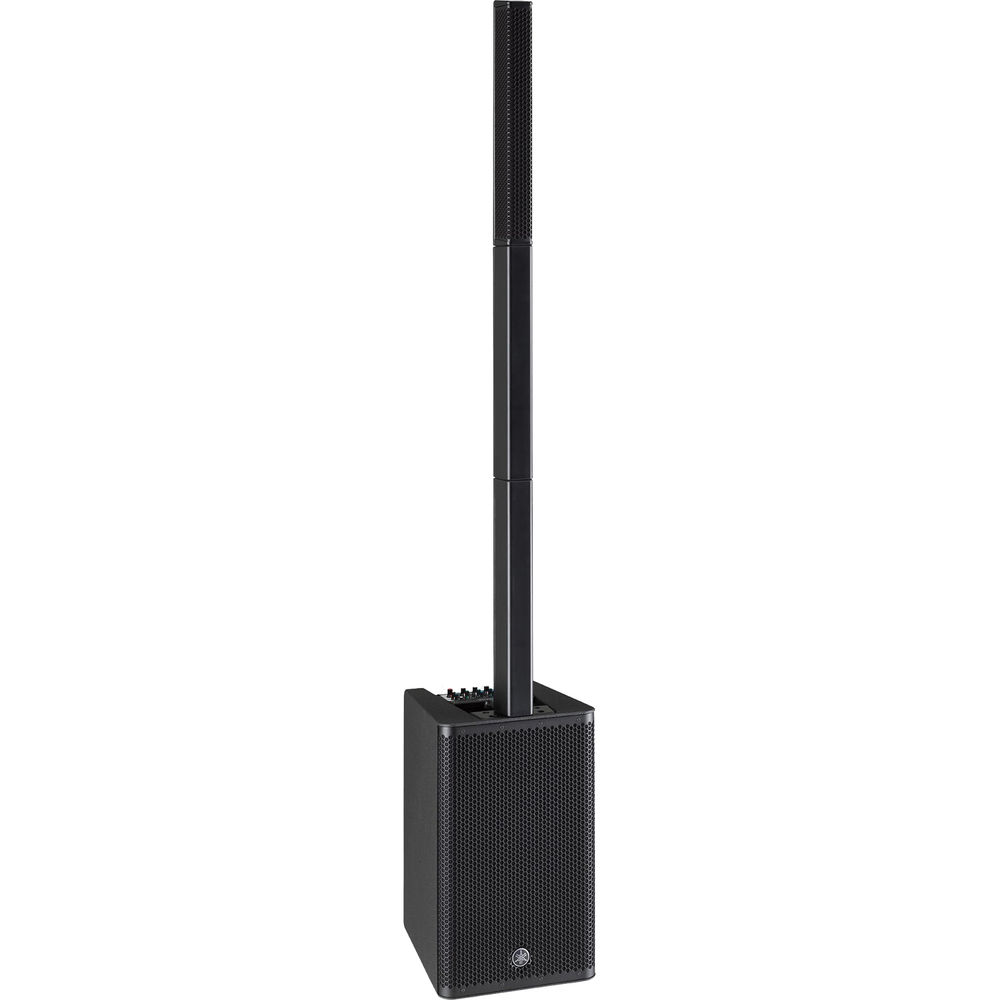

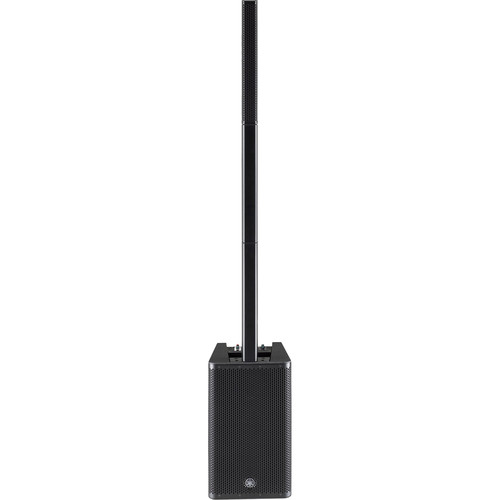

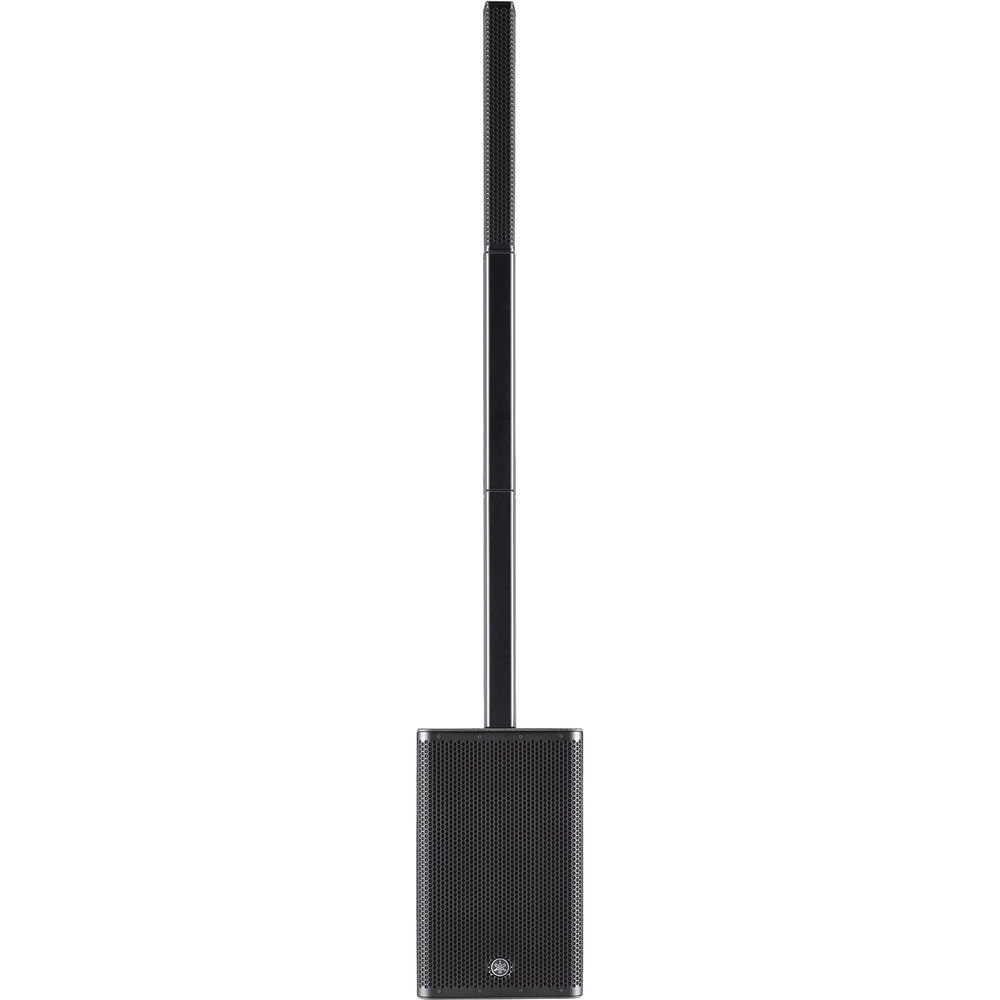

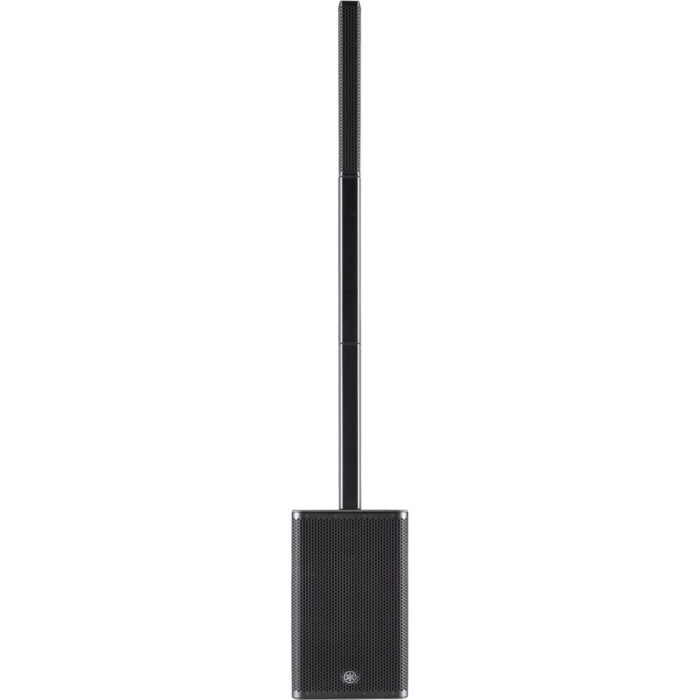

Yamaha STAGEPAS 1K Portable All-in-One PA System with Bluetooth

The Yamaha STAGEPAS 1K is an all-in-one portable PA system with Bluetooth that is compact enough to carry by hand making it well suited for coffee shops, small bands, bars, mobile DJs, and corporate AV applications. The system features an 810W Class-D amplifier to power the 12″ woofer, while 190W powers the array, which consists of 10 x 1.5″ cone drivers in a J-curve array configuration. The system offers a frequency response of 37 Hz to 20 kHz (-10 dB) and a maximum SPL of 119 dB.

The on-board mixer supplies three mono XLR-1/4″ combo connectors and a single stereo input with two 1/4″ or a 3.5mm connector. Channels 2-3 feature Hi-Z inputs for connecting acoustic-electric guitars and other instruments, while the stereo channel offers a Bluetooth connection for streaming wireless audio from any compatible device. Each channel includes a single-knob EQ for quickly contouring your source for the best sound possible. Channels 1-3 offer a dedicated reverb send. The master section provides a mode selector allowing you to dial in a single-knob compressor for speech, music, or club applications, while the reverb dial offers hall, plate, room, and echo settings. There is also a built-in limiter to prevent any overvaluation of the signal, which may damage the drivers.

Two STAGEPAS 1K can be connected for stereo or mono operation, expanding the coverage, SPL, and mixer inputs. The STAGEPAS Editor control app allows you to remotely dial in volume and EQ settings from a distance and save settings for easy recall. The system includes two spacers, allowing for flexibility in height for deployment onstage or on the floor. A custom-fit cover is included and features compartments for the speaker array, the two spacers, and a variety of accessories, such as microphones, cables, and more.

Powerful Compact Package
Lightweight and compact cabinet construction
High-output 1000W amplifier
Sound-pressure levels of up to 119 dB

J-Curve Slim Line Array
High-frequency speaker array is comprised of 10 small-diameter 1.5″ cone drivers
J-curve array configuration achieves 170° horizontal and 30° vertical coverage
Delivers clear, high-quality sound consistently over longer distances
Projects uniform, high-quality sound from the front to the rear of the audience
Compact 12″ Subwoofer
Reduced enclosure size and weight improves portability
Twisted Flare Port technology reduces port wind noise for maximized output with very deep, powerful, distortion-free bass
Maintains accurate, high-quality sound at high output
Professional Functionality with Simple Operation
Intuitive user interface
Dial in complex operations with a single knob
Reduced setup time
Streamlined system operation
Allows users to focus on their performance

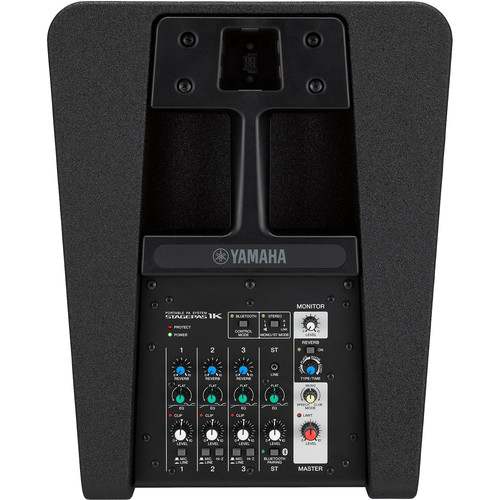

Digital Mixer with Versatile Inputs
Remarkably flexible
5-channel digital mixer with 3 x mono microphone/line inputs and 1 x stereo input
Two mono input channels offer Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments
Stereo input features two 1/4″ inputs and one 3.5mm mini jack for all line-level sources
Stereo channel supports playback with Bluetooth devices
Single-Knob Controls
1-knob EQ for optimized multiband EQ setting
Turning to the left to cut low-end frequencies for speeches
Turning to the right to emphasize the bottom and high end for band performances
Mode control for master output compression settings
Speech
Music
Club
SPX reverb send on mono channels with four selections
Hall
Plate
Room
Echo
STAGEPAS Editor
Dedicated remote control application
Adjust volume and EQ at a distance via Bluetooth
Save the adjusted settings for easy recall

Superior Utility and Portability
All-in-one portable PA system
Capable of filling a wide area with high-quality and uniform sound
Lightweight enough to be easily carried by anyone
Simple enough to set up in minutes
Durable enough to withstand harsh environments
Simple Setup
Place the 2 spacers and speaker unit into the subwoofer and setup is essentially done
No cables, speaker stand, or additional gear required beyond the main unit
Everything needed is included in the package
High-Grade Polyurea Coating
Lightweight ABS subwoofer cabinet
High-grade polyurea coating prevents wear and tear during transport
System is extremely portable, yet rugged and scratch-resistant enough to withstand harsh performance environments
Scalability via Linked STAGEPAS 1K Systems
Linking two STAGEPAS 1K’s to provide wider coverage and higher output power for larger scale performances
Both stereo and mono playback are supported
When set to mono, both STAGEAPAS 1K inputs can still be used (up to 6 mono inputs plus 2 stereo inputs)

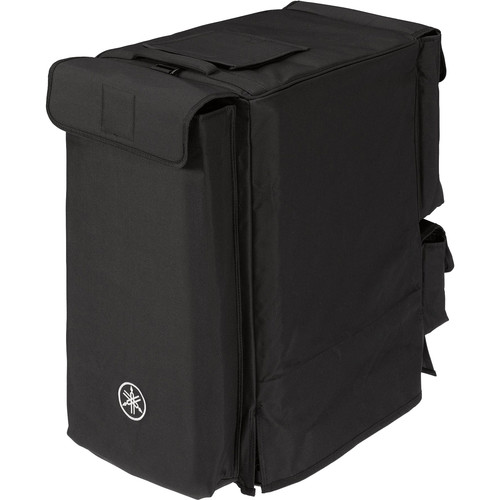

Fitted Cover Included
Cover for protecting the unit
Streamlines setup and breakdown
Offers pouches for both spacers and speaker array as well as additional storage pockets for microphones, cables, etc.
Optional Dolly
Optional custom dolly for convenient transportation (not included)
Useful for performers transporting additional gear and instruments
Simple, sturdy mechanism that locks down the speaker cover
Lightweight dolly enables smooth, reliable transportation

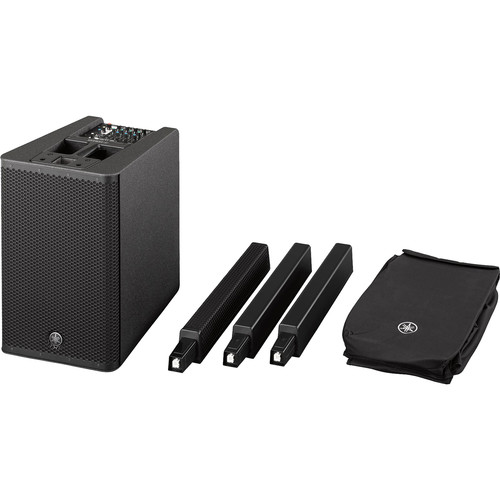

In the Box
Yamaha STAGEPAS 1K Portable All-in-One PA System with Bluetooth
Subwoofer
Line Array Speaker
2 x Spacers
Power Cord
Cover
1-Year Warranty
