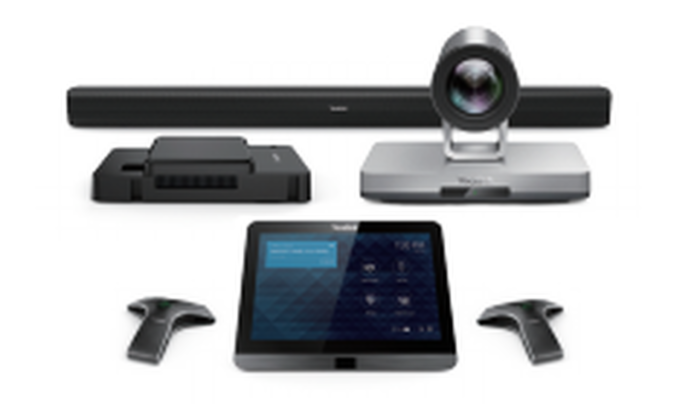

Yealink MVC800 Video Conferencing Kit for Microsoft Teams for Medium and Large Rooms

Yealink MVC800 Video Conferencing Kit for Microsoft Teams for Medium and Large Rooms

The Yealink MVC800 Room System for Microsoft Teams and Skype for business provides a native meeting experience that’s designed for medium and large conference rooms. This complete video conferencing room solution includes a touch console, content sharing unit, audio and video peripherals, and a mini PC.   The Yealink VCM 34 microphone array includes a 20ft (6 meter) voice pickup range and features Yealink Noise Proof technology. This allows everyone’s voice to be heard crisply and clearly. The UVC80 USB PTZ video conferencing camera features a 12x optical zoom with a long depth of field allowing the far end participants to see the meeting participants in the back of the room without quality loss.

It’s simple and easy to start and manage your meetings with the familiar Microsoft Teams interface. The Yealink Plug-in software eliminates the need for a remote control as you’re able to control the USB PTZ camera on the touch console directly via its software. Yealink’s next generation video conferencing camera, the UVC80, supports 1080P/60FPS video calls to make your meetings appear as life-like and interactive as possible. The audio features Yealink’s audio algorithm and is equipped with two microphones that support 20ft/360° voice pickup range with a speaker capable of producing louder output up to 40W. The Yealink Noise Proof technology efficiently eliminates background noises providing a crystal-clear voice even in the noisiest of environments. The MVC800 provides room control through a touch console that is not only efficient but gives you a neat and tidy smart conference table. Easily Managed through Yealink Device Management Platform, this solution supports Yealink Device Management Platform/Cloud Service allowing you to flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices and peripherals.

System Components

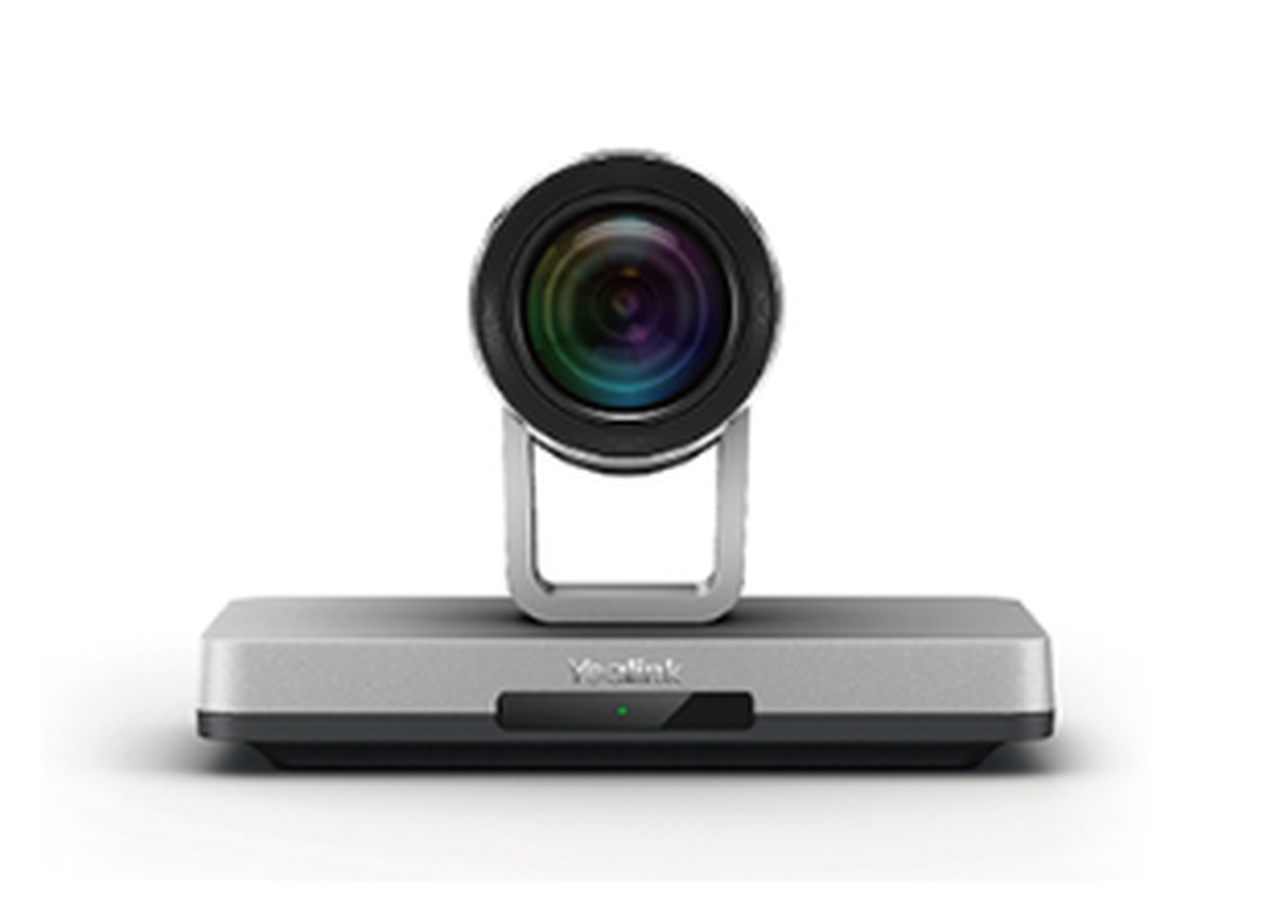

	Yealink UVC80 USB PTZ Video Conferencing Camera 12x optical zoom with 1080p/60FPS Diagonal field of view of 78.5 degrees Pan range of 200 degrees and a tilt range of 60 degrees USB 2.0 Type B USB 2.0 Type A Yealink VCH port (RJ-45) Line-out for Yealink MSpeaker

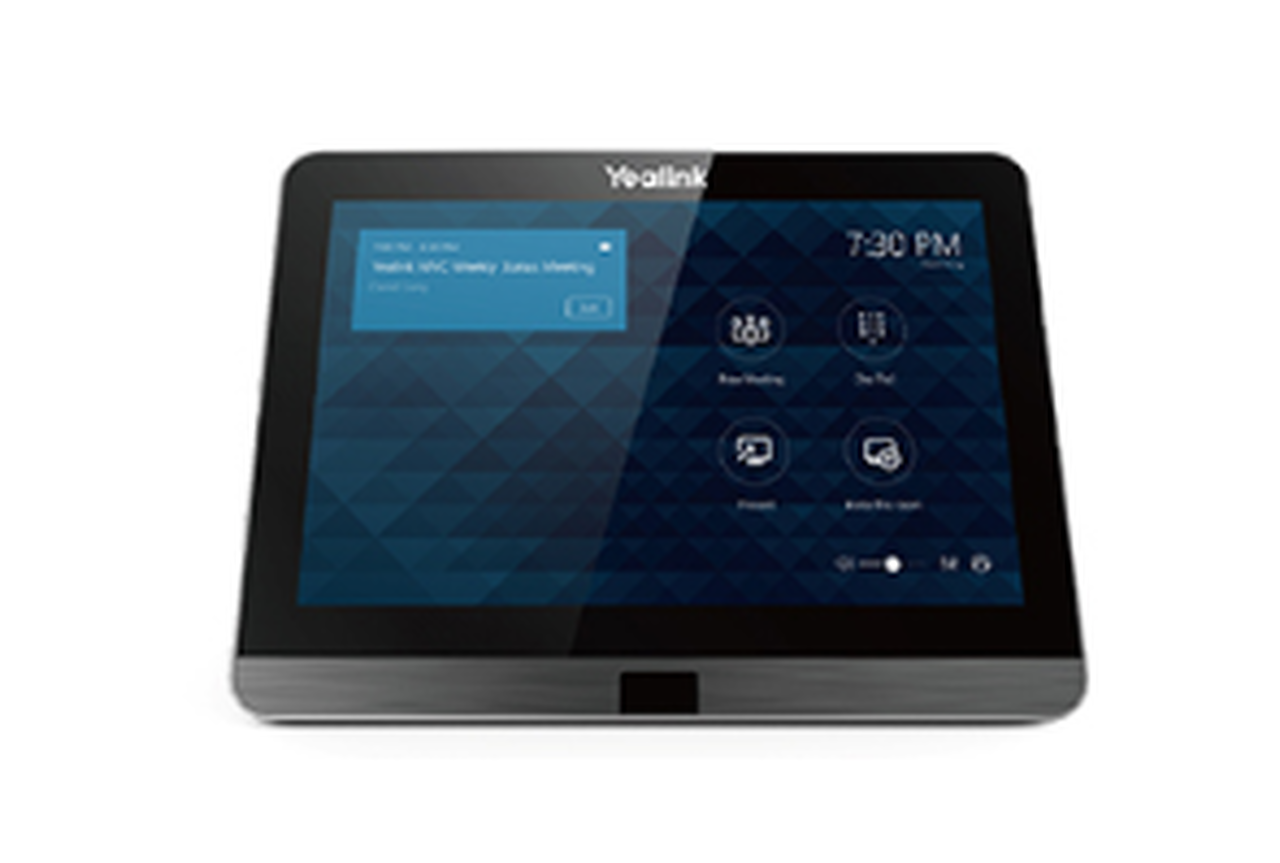

	Yealink MTouch Console 8” IPS Screen 1280 x 800 resolution Native Microsoft Interface 10-point capacitive touch Adjustable bracket (23 degree ~ 50 degree) Human motion sensor 3.5mm headset jack Yealink camera control plug-in

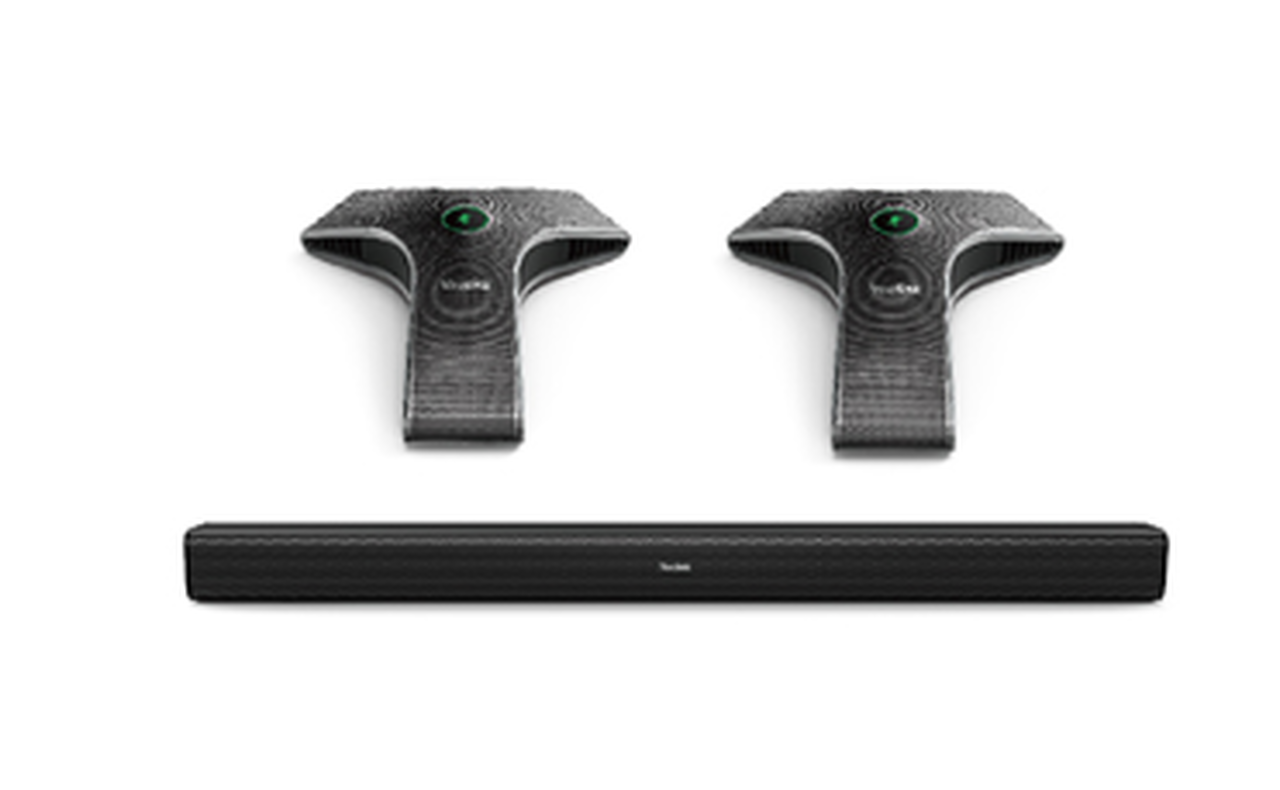

	Yealink VCM32 Microphone Array and MSpeaker Built in 3 microphone arrays Voice pickup range of 20ft (6 meter) Cascade connection up to 4 units Yealink Noise Proof Technology Mute Button with LED Speaker Output (THD-1.0%) Frequency response:  60Hz-20KHz S/N: >70dB
	Yealink MShare HDMI Ingest 1080p/20FPS FHD by MJPEG format Supports wireless and wired content sharing Built-in WiFi for Yealink wireless presentation device HDMI video input Mini-DP video input USB 2.0 Type B USB 2.0 Type A *Yeaklink WPP20 pictured is not included with this kit.

What’s in the Box:

• MTouch Console
• UVC80 12x Optical Camera
• MShare HDMI Ingest
• 2-3 VCM34 Microphone Arrays
• MSpeaker Soundbar
• Mini PC
